偉頓全封閉駕駛式掃地車W2000的技術參數 TECHNICAL PARAMETERS:
1.清掃寬度 Working Width:1900-2100mm
2.清掃效率 Productivity:≥14000㎡/h
3.續航時間 Continuous Work Time:6-8h
4.垃圾箱容量 Waste Hopper Capacity:250L
5.過濾器面積（濾芯）Filter Surface:10㎡
6.主刷尺寸 Length of Main Brush:800mm
7.邊刷尺寸 Diameter of Side Brush:500mm
8.行駛速度 Max Driving Speed:18km/h
9.清掃速度 Max Working speed:7-18km/h
10.爬坡能力 Gradeability:30度
11.電壓 Voltage：48V
12.整機重量 Net weight ：1000Kg
13.作業功率 Working Power：(風機Vacuuming800+主刷Main Brush750+邊刷Side Brush80x4+振塵Vibration90) =1960W
14.驅動功率 Driving Power(Motor)：3000W
15.總功率 Total Power:4960
16.霧式噴水水箱 Water Tank Capacity:50L
17.遮陽頂棚 Sunshade：標配
18.擋風玻璃 Windscreen：標配
19.尺寸（長*寬*高）Dimension(L/W/H)：2250*1900*1930mm
20.包裝尺寸（長*寬*高）Packaging Size(L/W/H)：2350*1400*2050mm
產品特點：
1.高集成電路：顯示故障代碼，自動保護電氣配件，故障率低，方便日常維護。
2.定速巡航：讓操作更輕松。
3.剎車回充：行駛途中動能轉化為電能，續航時間更長。
4.強吸塵系統：800W的風機電機，10平方米大過濾面積，配合強負壓離心式鋁合金風葉，比同類型掃地機高雙倍的吸塵效率，專業解決惡劣粉塵環境的揚塵問題。
5.采用3000W大扭矩他勵驅動電機，設計3倍過載能力，穩定可靠，爬坡能力和汽車媲美。
6.驅動橋：無級變速后橋，鋁合金箱體，修形研磨齒輪設計，無噪音，重量輕，不漏油，更耐久更可靠。
7.控制器：采用美國KELLY品牌控制器，確保動力輸出平穩，性能卓越。
8.專利車身減震系統：減少機器因震動造成的機器故障率，提升操控舒適性。
9.剎車性能：水平路面全速行駛的情況下，2米內剎車，安全可靠。
10.250L大垃圾箱容量：減少垃圾傾倒次數，減輕清潔工勞動強度，節省工作時間，環衛作業利器。
11.濾芯清潔便捷：后欣市設計，所有內部件一目了然，清潔工也能進行建議故障排除。
12.維護方便：后欣市設計，所以內部件一目了然，清潔工也能進行建議故障排除。
13.綜合性能穩定，工業級設計制造標準，性能穩定，維修成本低。
14.每小時工作效率可達14000平方米/每小時，一部機器可以代替12-16個勞動力。

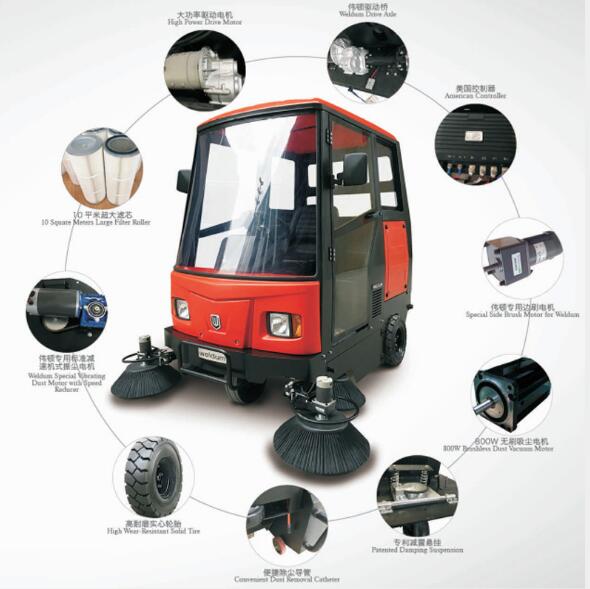

PRODUCT FEATUES:
1.High Integrated Circuit:Display fault code,automatic protection of electrical elements,low failure rate,convenient for daily maintenance.
2.Cruise Control:Make the operation easier.
3.Braking Recharge:Driving kinetic energy change to electricity when brake.the uptime can be longer.
4.800W vacuum motor,10sq.m large filtering area,with strong negative pressure centrifugal aluminum blades,higher than the same type sweeping machine with double dust collection efficiency,specialized to solve the problem of the dusty environment.
5.With 3000W high torque separately excited drive motor,designed with 3 times overload capacity,stable and reliable,and has the equivalent climbing ability of the cars.
6.Ultra-quiet CVT(Continuously Variable Transmission)rear driving axle,with aluminum alloy enclosure and good-look grinding gear design,no noise,light weight,no leaking ,more durable and reliable.
7.Use thd U.S. "Kelly" brand controller,and ensure the smooth power output.The performance is remakable.
8.Reduce thd machine failure rate caused by vibration and improve the comfort.
9.Can be breaked within 2m along smooth road under the condition of full-speed operation.
10.Can reduce the times of dumping garbage,mitigate the labor strength of cleaner,and save work time.
11.W/external dust-removal pipe for daily filter roller cleaning,no need to remove the fitler roller,simple and quickly.
12.With rear-lift type design,all internal parts are clear at a glance ,and cleaner can also perform simple troubleshooting.
13.W/industrial-level design and manufacturing standard,stable performance,low maintenance cost.
14.Maximum woking efficiency per hour is up to 14000/h,and a machine can replace 12-16labor force.
|
|
